Name:Bocon
Brand: Bocon
Original: China
Patent applied ,please don't copy!
|
Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Turkey, Viet Nam, Saudi Arabia, Indonesia, Pakistan, Algeria, Kazakhstan |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | NoEnName_Null |
| Condition: | New | Type: | Natural Circulation |
| Use: | Industrial | Structure: | Water Tube |
| Pressure: | Low Pressure | Steam Production: | Max. 4t/h |
| Style: | VERTICAL | Fuel: | Electric |
| Output: | Steam | Dimension(L*W*H): | 600*800mm*1850 |
| Weight: | 100kg | Warranty: | 1 Year |
| Key Selling Points: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Maximum Vaporization Capacity: | 1.2KG/min | Circulating Water Use Temperature: | 45-65°C |
| Air Pressure: | 6-8Mpa | Material: | SUS304 Stainless Steel |
| Color: | Champagne Gold | Marketing Type: | New Product 2020 |
| Port: | Shanghai |
SPECIFICATIONS | ||||||
basic parameters | Circulating water use temperature | ℃ | 45-65 | |||
maximum vaporization capacity | 1.2KG/min | |||||
Pneumatic ball valve using air pressure | MPa | 6-8 | ||||
Model | BV G 01 N | |||||
material | stainless steel (304) | high corrosion resistance | ||||
Circulating water use temperature: 45-65°C
Pneumatic ball valve using air pressure: 6-8Mpa
When the water temperature is 55°C: the maximum vaporization capacity is 1.2KG/min;
Performance introduction:

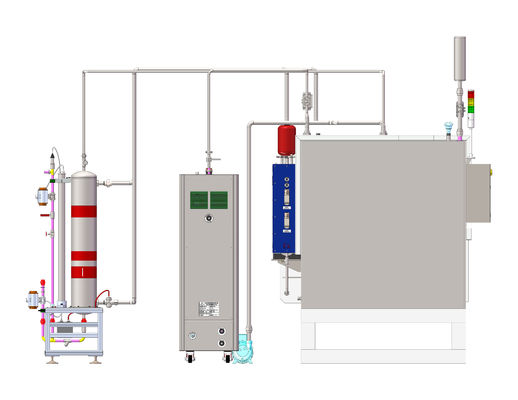

Two installation methods are available for selection, one standing installation; one is wall-mounted installation, and the installation mode can be selected according to the conditions of the site, the space is reduced, and the site installation is convenient.

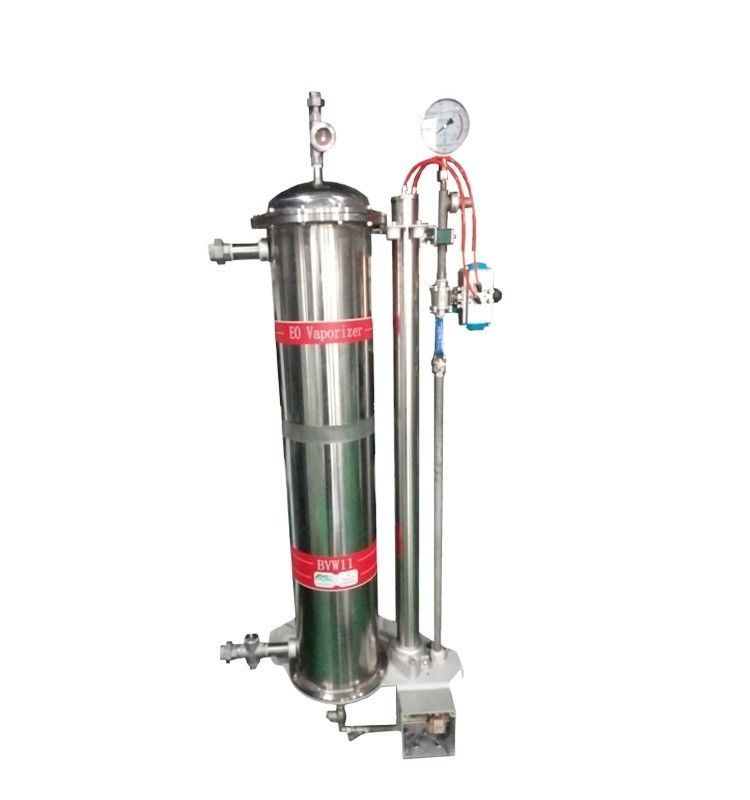

This product uses stainless steel hose as a heat exchange tube, a number of stainless steel hoses are coiled up in a stainless steel barrel, the length of the heat exchange pipe is increased, the heat transfer effect is ensured, and the vaporization effect is enhanced.
The vaporizer regulations define all pipe interfaces to make their installation specification.
