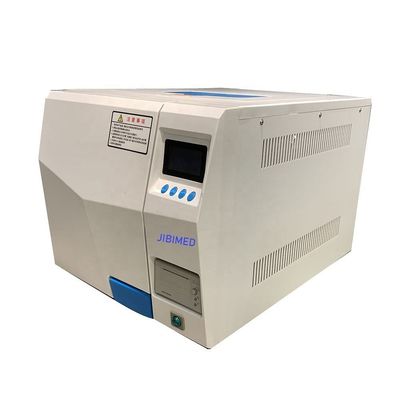

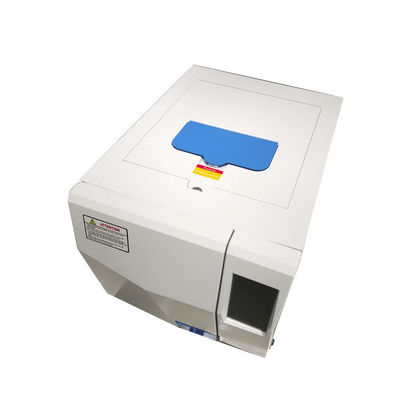

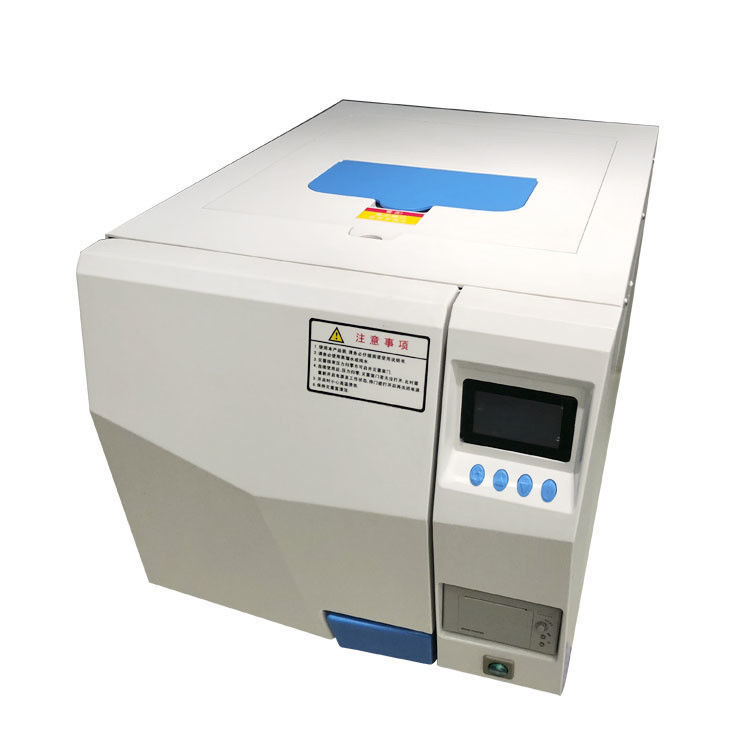

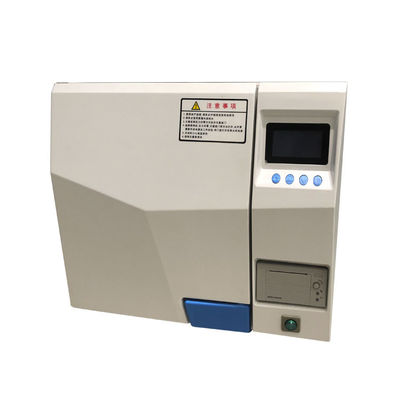

pressure steam sterilizer autoclave 20 liter 24 liter rapidly sterilizer 20l/24l

Large Image : pressure steam sterilizer autoclave 20 liter 24 liter rapidly sterilizer 20l/24l

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	HZBOCON
Model Number:	TM-XD24DV,TM-XD20DV

Payment & Shipping Terms:

Price:	$1,716.00/sets >=1 sets
Packaging Details:	as your request
Supply Ability:	1000 Set/Sets per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Warranty:	1 Year
After-sale Service:	Online Technical Support	Material:	SUS 304
Shelf Life:	1years	Quality Certification:	None
Instrument Classification:	Class II	Safety Standard:	None
Product Specification:	TM-XD24DV,TM-XD20DV	Chamber Volume:	24l
Working Pressure:	0.22MPa	Working Temperature:	134 Degrees Celsius
Max Working Pressure:	0.23 Mpa	Heat Average:	≤2℃
Timer:	0-99 Min	Adjustment Of Temperature:	55℃~134℃
Power:	AC220V/50HZ	Sterilizing Plate:	675045cm
G.W N.W:	60kg/50kg	Port:	Tianjin/SHANGHAI,ningbo

Products Description

Chamber Volume:	20 Liters（φ250×350 mm）	24 Liters（φ250×430 mm）	35Liters	50 Liters
Max working temperature:	134℃±1℃	134℃±1℃	134℃±1℃	134℃±1℃
Max working pressure:	0.23mpa	0.22mpa	0.22mpa	0.22mpa
Adjusted sterilizing temperature range:	55℃~134℃	55℃~134℃	55℃~134℃	55℃~134℃
Adjusted timer range:	1~99mins	1~99mins	1~99mins	1~99mins
Adjusted drying time range:	1~99mins	1~99mins	1~99mins	1~99mins
Vacuum limit:	-0.08mpa	-0.08mpa	-0.08mpa	-0.08mpa
Hot Average:	≤2℃	≤2℃	≤2℃	≤2℃
Power supply:	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ	AC220V/50HZ
Dimension:	675045cm	675045cm	730×550×510 mm	770×600×540 mm
Transport dimension:	705860cm	805855cm	810×680×650 mm	880×730×700 mm
Gross/Net Weight	54kg/47kg	60kg/50kg	115/93 kg	130/106 kg

Details Images

1.The sterilizing procedure is automatically controlled, it is not necessary to be supervised, and used conveniently. 2.At lease 3 or more times pulse-vacuum exhausting, which is applied to wrapped or unwrapped objects,hollow equipment. 3.Drying function. 4.With inner printer, which record the for the full procedure of the sterilization. 5.With Bowie&Dick testing function, which is for the steam penetrating testing. 6.Self-testing malfunction, easy to maintain. 7.Safety functions: Safety locking: the steam can not enter the chamber and the unit will alarm when the door is not closed tightly,and the door can not the open when the inner pressure is exceed 0.027mpa. Over pressure protection: If the pressure exceed the working pressure, the safety valve will exhausting the air. Low water protection: The unit can not be started if the water don’t reach the high level,and the power will cut off directly. Over current protection: The broker will cut off the power by the over current happened.
